Project Energy Storage Power Stations

Utility-scale containers, PV-storage-diesel hybrid systems, C&I outdoor cabinets, MV power skids and system control for grid-side, renewable and industrial projects.

In this section

GS-C5000L5 MWh 20 ft Liquid-Cooled Battery Container
GS-HC Series10 ft PV-Storage-Diesel Hybrid Container, 125 – 500 kW / 522 – 1044 kWh
GS-CI261L125 kW / 261 kWh Liquid-Cooled C&I Outdoor Cabinet
GS-CI215L / GS-CI215A100 kW / 215 kWh C&I Cabinets: Liquid-Cooled or Air-Cooled with PV Input
GS-SK5000S / GS-SK5000CPCS & MV Step-Up Transformer Skid (String or Centralized)
GS-PCS430 / GS-PCS215 & GS-EMSGrid-Forming String PCS and Energy Management System
GS-CI418HV418 kWh 1500 V Liquid-Cooled Battery Cabinet
GS-CI-i SeriesImmersion-Cooled All-in-One C&I Cabinets, 215 – 261 kWh

GS-C5000L

5 MWh 20 ft Liquid-Cooled Battery Container

5.016 MWh1331.2 V20 ft

Overview

A 20 ft outdoor liquid-cooled battery container delivering 5.016 MWh from LFP 3.2 V / 314 Ah cells. Twelve 1P416S battery clusters, each built from four 1P104S packs, give a rated voltage of 1331.2 V. Aerosol and water-spray fire suppression and C4 anti-corrosion protection are included.

Key applications

Utility-scale and grid-side storage
Renewable energy firming

Enquire about this product

Full technical specifications – GS-C5000L

Technical specifications – GS-C5000L
Parameter	GS-C5000L
Battery system
Cell type	LFP 3.2 V / 314 Ah
System configuration	1P416S × 12
Rated energy	5.016 MWh
Rated voltage	1331.2 V
Voltage range	1164.8 – 1476.8 V
Charge / discharge rate	0.5P
Battery pack
Cell	LFP 3.2 V / 314 Ah
Pack configuration	1P104S
Pack rated voltage	332.8 V
Pack voltage range	291.2 – 369.2 V
Pack charge / discharge rate	0.5P
General
Auxiliary power	AC380V @ 50 Hz, AC220V @ 50 Hz (ATS)
Cooling	Liquid cooling (60 kW cooling capacity)
Fire suppression	Aerosol + water spray
Communication	Ethernet / RS485 / CAN
Ingress protection	IP54
Anti-corrosion	C4
Operating temperature	-20 to 55 °C
Humidity	5 – 95% RH, non-condensing
Altitude	2000 m (> 2000 m derate)
Dimensions (W × D × H)	6058 × 2438 × 2896 mm
Weight	43000 kg

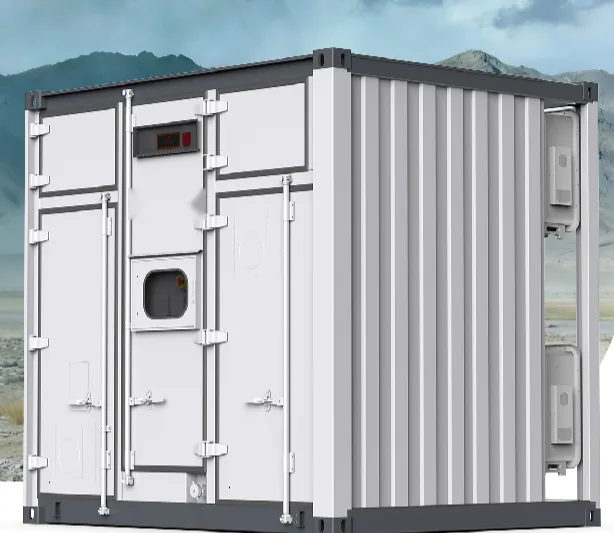

GS-HC Series

10 ft PV-Storage-Diesel Hybrid Container, 125 – 500 kW / 522 – 1044 kWh

Models: GS-HC250-522 · GS-HC375-783 · GS-HC500-1044 · GS-HC125-522 · GS-HC250-1044

125 – 500 kW / 522 – 1044 kWh

Overview

An integrated 10 ft container combining LFP battery storage, a hybrid inverter with PV MPPT input and a diesel-generator interface. It runs grid-connected or off-grid and switches in under 20 ms, which suits sites with weak grids, frequent load-shedding or diesel-only supply.

Key applications

Off-grid and weak-grid sites
PV-storage-diesel microgrids
Mining, islands and remote facilities
C&I backup and diesel reduction

Enquire about this product

Full technical specifications – GS-HC Series

Technical specifications – GS-HC Series
Model	GS-HC250-522	GS-HC375-783	GS-HC500-1044	GS-HC125-522	GS-HC250-1044
Ratings
Rated AC output	250 kW	375 kW	500 kW	125 kW	250 kW
Battery capacity	522 kWh	783 kWh	1044 kWh	522 kWh	1044 kWh
String formation	2P260S	3P260S	4P260S	2P260S	4P260S
C-rate	0.5C	0.5C	0.5C	0.25C	0.25C
PV max input	500 kW	750 kW	1000 kW	250 kW	500 kW
Generator input	250 kW	375 kW	500 kW	125 kW	250 kW
Weight (approx.)	7.5 t	9.5 t	11.5 t	7 t	11 t
Battery
Cell / pack	LFP 314 Ah / 1P52S pack
Rated voltage	832 V
Voltage range	728 – 923 V
PV, grid & generator
PV max voltage	1000 V
PV rated / start voltage	400 V / 180 V
MPPT voltage range	150 – 950 V
Grid connection	3/N/PE, 230/400 V, 50/60 Hz
Generator connection	3/N/PE, 230/400 V
On/off-grid switching	< 20 ms
General
Cooling	Battery: liquid; hybrid inverter: air
Ingress protection	IP54 / IP55
Operating temperature	-20 to 55 °C
Humidity	5 – 95% RH
Altitude	≤ 3000 m (derating above 2000 m)
Fire protection	Temperature + smoke + combustible-gas detection, ventilation, aerosol + water spray
Communication	Ethernet / CAN / RS485
Dimensions (W × D × H)	2991 × 2438 × 2896 mm (single battery compartment)

Swipe the table sideways to see all models

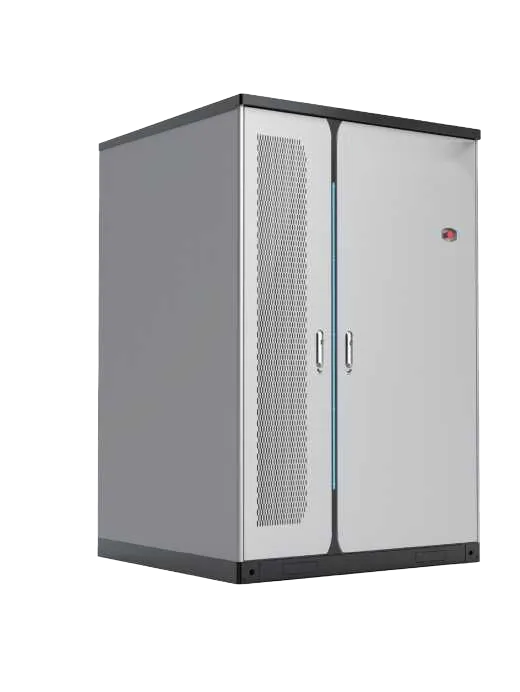

GS-CI261L

125 kW / 261 kWh Liquid-Cooled C&I Outdoor Cabinet

125 kW / 261 kWh

Overview

An all-in-one outdoor cabinet that integrates the LFP battery, power conversion, liquid thermal management, fire protection and communications in a single enclosure. Rated 125 kW / 261 kWh for commercial and industrial sites.

Key applications

Commercial buildings and industrial parks
PV-storage-charging stations
Factory capacity expansion

Enquire about this product

Full technical specifications – GS-CI261L

Technical specifications – GS-CI261L
Parameter	GS-CI261L
Battery
Cell type	LFP 3.2 V / 314 Ah
Battery pack	1P52S / 52.25 kWh
Rated energy	261.2 kWh
Rated voltage	832 V
Voltage range	728 – 936 V
Depth of discharge	100% max / 90% recommended
C-rate	≤ 0.5P
Cycle life	8000
AC side
Rated power	125 kW (max 137.5 kW)
Grid	400 V (-15% to +15%), 50/60 Hz, 3P3W / 3P4W
Power factor	-1 (leading) to 1 (lagging)
THD	< 3%
Switching time	< 100 ms
Efficiency	> 88%
Isolation	Non-isolated
General
Cooling	Liquid cooling
Fire protection	Fire control host + multi-sensor detection + perfluorohexanone; water (optional)
Ingress protection	IP54
Operating temperature	-20 to 50 °C (derating above 45 °C)
Storage temperature	-30 to 60 °C
Altitude	≤ 3000 m
Noise	< 80 dB
Communication	RS485 / Ethernet / CAN, Modbus RTU/TCP
Cable entry	Bottom in / bottom out
Dimensions (W × D × H)	1480 × 1350 × 2205 mm
Weight	2800 kg
Design life	15 years

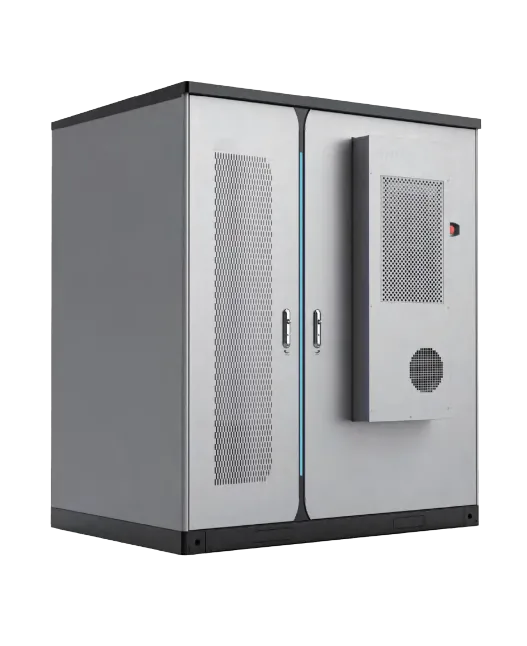

GS-CI215L / GS-CI215A

100 kW / 215 kWh C&I Cabinets: Liquid-Cooled or Air-Cooled with PV Input

Models: GS-CI215L · GS-CI215A

100 kW / 215 kWh

Overview

Two 100 kW / 215 kWh outdoor cabinet versions based on 280 Ah LFP cells: GS-CI215L with liquid cooling, and GS-CI215A with air-conditioner cooling and a built-in two-MPPT PV input for direct solar coupling.

Key applications

Commercial and industrial sites
C&I sites with on-site PV (GS-CI215A)

Enquire about this product

Full technical specifications – GS-CI215L / GS-CI215A

Technical specifications – GS-CI215L / GS-CI215A
Model	GS-CI215L (liquid)	GS-CI215A (air + PV)
Battery
Cell type	LFP 3.2 V / 280 Ah
Battery pack	1P48S / 43 kWh	1P20S / 17.9 kWh
System configuration	1P240S (5 × 1P48S)	1P240S (12 × 1P20S)
Rated energy	215.04 kWh
Rated voltage	768 V
Voltage range	672 – 864 V	696 – 852 V
Depth of discharge	100% max / 90% recommended	–
C-rate	≤ 0.5P	–
Cycle life	8000
AC & PV
Rated power	100 kW (max 110 kW)
Grid	400 V (-15% to +10%), 50/60 Hz, 3P3W / 3P4W	400 Vac (-15% to +10%), 50/60 Hz, 3P4W
PV input	–	150 – 850 V, MPPT 320 – 800 V, 2 MPPT, 32 A / 32 A
Power factor	-1 (leading) to 1 (lagging)	–
THD	< 3%	–
Switching time	< 100 ms
Efficiency	> 88%	> 85%
General
Cooling	Liquid cooling	Air conditioner
Fire protection	Fire control host + multi-sensor + perfluorohexanone; water (optional)	–
Ingress protection	IP54
Operating temperature	-20 to 50 °C (derating above 45 °C)	–
Altitude	≤ 3000 m	–
Noise	< 75 dB	75 dB
Communication	RS485 / Ethernet / CAN, Modbus RTU/TCP
Dimensions (W × D × H)	1400 × 1360 × 2200 mm	1740 × 1200 × 2205 mm
Weight	2500 kg	2600 kg

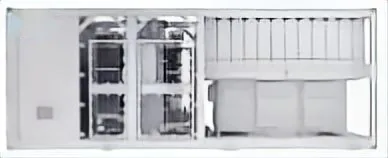

GS-SK5000S / GS-SK5000C

PCS & MV Step-Up Transformer Skid (String or Centralized)

Models: GS-SK5000S · GS-SK5000C

24 × 215 kW4 × 1250 kW6 – 35 kV

Overview

A pre-integrated power conversion and medium-voltage step-up skid that connects utility battery blocks to a 6 – 35 kV grid. Available with string-type PCS (24 × 215 kW) or centralized PCS (4 × 1250 kW), and with a dry-type or oil-immersed transformer.

Key applications

Grid connection of utility-scale BESS
Pairing with GS-C5000L battery containers
Renewable plant storage at medium voltage

Enquire about this product

Full technical specifications – GS-SK5000S / GS-SK5000C

Technical specifications – GS-SK5000S / GS-SK5000C
Model	GS-SK5000S (string)	GS-SK5000C (centralized)
PCS
PCS type	String type	Centralized
PCS rated voltage	690 V
PCS rated power	24 × 215 kW	4 × 1250 kW
Accuracy	± 2%	± 1%
Power factor	> 0.99
Grid frequency	50 Hz ± 5 Hz
Transformer
Transformer type	Dry-type / oil-immersed
Voltage ratio	0.69 / (6 – 35) kV
Vector group	Dy11
General
Dimensions	7620 × 2438 × 2896 mm (PCS + step-up skid); 6058 × 2438 × 2896 mm (step-up transformer unit)
Ingress protection	IP54

GS-PCS430 / GS-PCS215 & GS-EMS

Grid-Forming String PCS and Energy Management System

Models: GS-PCS430 · GS-PCS215

430 / 215 kVA

Overview

Modular string PCS units with grid-forming capability and SiC power devices, rated 430 kVA or 215 kVA, convert power between battery clusters and the grid. The GS-EMS energy management system supervises the site with closed-loop safety management, performance diagnosis and early warning.

Key applications

Utility and C&I battery storage systems
Grid-forming and weak-grid applications
Site energy scheduling and condition monitoring

Enquire about this product

Typical system architecture (schematic)

Full technical specifications – GS-PCS430 / GS-PCS215 & GS-EMS

Technical specifications – GS-PCS430 / GS-PCS215 & GS-EMS
Model	GS-PCS430	GS-PCS215
String PCS
Rated power	430 kVA	215 kVA
Topology	String PCS, grid-forming
Power devices	SiC
GS-EMS performance (manufacturer data)
Fault recognition rate	> 93%
False alarm rate	< 0.1%
Early warning time	Up to 50 days
State assessment error	≤ 2%
Life assessment error	≤ 6%

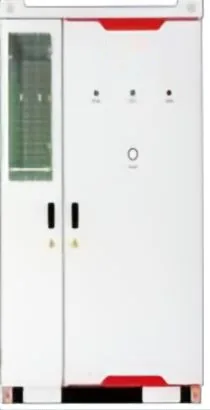

GS-CI418HV

418 kWh 1500 V Liquid-Cooled Battery Cabinet

418 kWh1331.2 VDC

Overview

A high-voltage DC battery cabinet for distributed C&I and utility projects. 314 Ah LFP cells in a 1P416S string give 418 kWh at 1331.2 V, for use with an external PCS. Includes intelligent liquid cooling, cluster-level balancing and PACK-level fire detection with gas and water suppression.

Key applications

High-voltage C&I energy storage
Distributed utility storage
Projects with external string or central PCS

Enquire about this product

Full technical specifications – GS-CI418HV

Technical specifications – GS-CI418HV
Parameter	GS-CI418HV
Battery
Cell type	LFP 3.2 V / 314 Ah
System configuration	1P416S
Rated energy	418 kWh
Rated voltage	1331.2 VDC
Voltage range	1081.6 – 1497.6 VDC
C-rate	0.5C
Balancing	Cluster-level
General
Cooling	Intelligent liquid cooling
Fire protection	PACK-level detection, gas + water
Communication	CAN2.0, Modbus-TCP, IEC61850
Ingress protection	IP55
Dimensions (L × W × H)	1350 × 1300 × 2300 mm
Weight	3 t

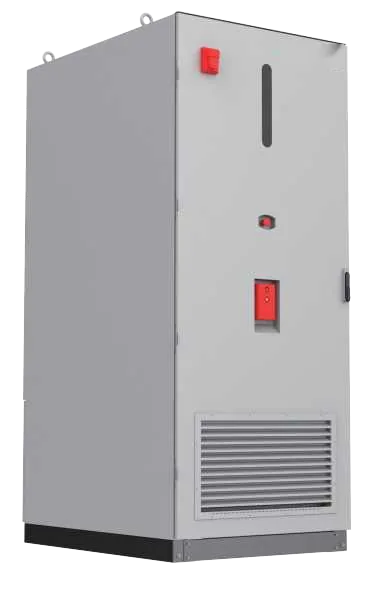

GS-CI-i Series

Immersion-Cooled All-in-One C&I Cabinets, 215 – 261 kWh

Models: GS-CI215i · GS-CI233i · GS-CI261i

100 – 125 kW / 215 – 261 kWh

Overview

A premium all-in-one cabinet that uses PACK-level static immersion combined with cold-plate cooling for thermal management. Offered in three configurations from 100 kW / 215 kWh to 125 kW / 261 kWh with IP54 protection.

Key applications

Data centres
Ultra-fast charging stations
Mining sites

Enquire about this product

Full technical specifications – GS-CI-i Series

Technical specifications – GS-CI-i Series
Model	GS-CI215i	GS-CI233i	GS-CI261i
Ratings
Cell type	LFP 3.2 V / 280 Ah	LFP 3.2 V / 280 Ah	LFP 3.2 V / 314 Ah
Battery pack	1P48S / 43.008 kWh	1P52S / 46.592 kWh	1P52S / 52.2496 kWh
System configuration	1P240S	1P260S	1P260S
Rated energy	215.04 kWh	232.96 kWh	261.248 kWh
Rated voltage	768 V	832 V	832 V
Voltage range	672 – 864 V	728 – 936 V	728 – 936 V
Rated power	100 kW (max 110 kW)	125 kW (max 137.5 kW)	125 kW (max 137.5 kW)
General
Grid	400 Vac (-15% to +15%), 50/60 Hz
Efficiency	> 90%
Cycle life	8000
Thermal management	PACK static immersion + cold plate
Ingress protection	IP54
Operating temperature	-20 to 50 °C
Noise	< 80 dB
Communication	CAN2.0 / RS485 / Ethernet
Dimensions	1020 × 1400 × 2470 mm
Weight	Approx. 2600 / 2700 kg (by configuration)

Swipe the table sideways to see all models

Model names are GREEN & STRONG catalogue designations. Specifications are subject to change without notice; please confirm the final configuration with us when ordering. Product images are for reference only.
